Koyo SN507
(BRAND)：KOYO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications

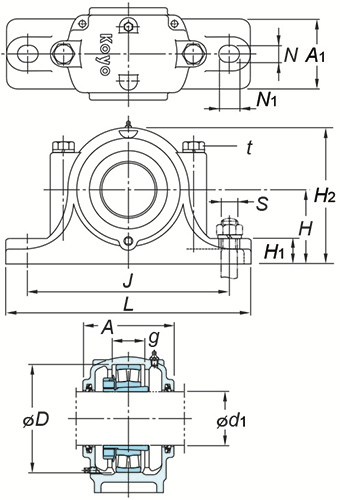

(Boundary dimensions ...etc)
d1
30 mm
d
mm
d2
mm
D
72 mm
H
50 mm
J
150 mm
J1
- mm
L
185 mm
A
82 mm
A1
52 mm
H1
22 mm
H2
95 mm
N
15 mm
N1
20 mm
g
33 mm
t(Bolt size)
M10 mm
x
- mm
Bolt size S
M12
Bolt size S(Two)
-
Bolt size S(Four)
-
Grease nipple size
R 1/8
Drain plug size
R 1/8
Mounting dimensions
Refer.
(Refer.)Housing mass
2.3 kg
