Koyo SN610
(BRAND)：KOYO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications

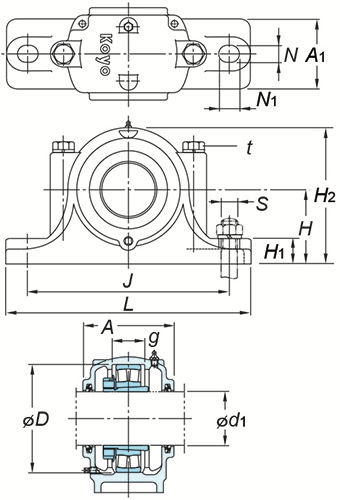

(Boundary dimensions ...etc)
d1
45 mm
d
mm
d2
mm
D
110 mm
H
70 mm
J
210 mm
J1
- mm
L
255 mm
A
115 mm
A1
70 mm
H1
30 mm
H2
135 mm
N
18 mm
N1
23 mm
g
50 mm
t(Bolt size)
M12 mm
x
- mm
Bolt size S
M16
Bolt size S(Two)
-
Bolt size S(Four)
-
Grease nipple size
R 1/8
Drain plug size
R 1/8
Mounting dimensions
Refer.
(Refer.)Housing mass
4.7 kg
