Koyo SN617
(BRAND)：KOYO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications

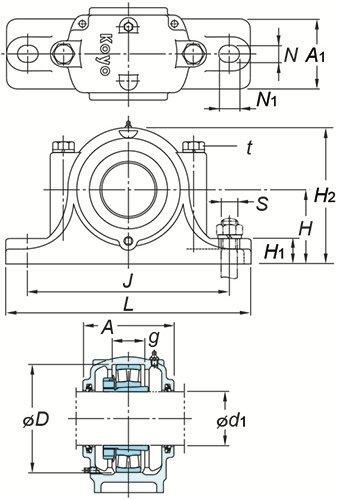

(Boundary dimensions ...etc)
d1
75 mm
d
mm
d2
mm
D
180 mm
H
112 mm
J
320 mm
J1
- mm
L
380 mm
A
155 mm
A1
110 mm
H1
40 mm
H2
223 mm
N
26 mm
N1
32 mm
g
70 mm
t(Bolt size)
M20 mm
x
- mm
Bolt size S
M24
Bolt size S(Two)
-
Bolt size S(Four)
-
Grease nipple size
R 1/8
Drain plug size
R 1/8
Mounting dimensions
Refer.
(Refer.)Housing mass
16.8 kg
