Koyo T7FC060
(BRAND)：KOYO
(Availability)：In Stock
Specifications

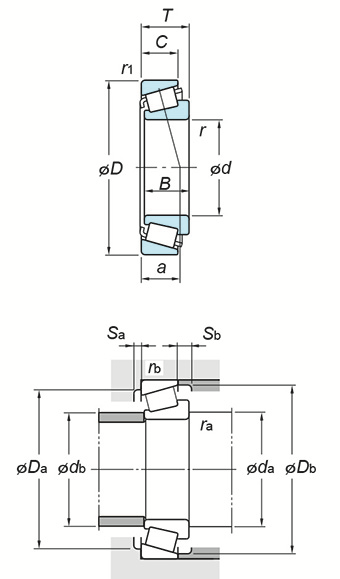

(Boundary dimensions ...etc)
d
60 mm
D
125 mm
T
37 mm
B
33.5 mm
C
26 mm
r(min.)
3 mm
r1(min.)
3 mm
Basic load ratings : Cr
191 kN
Basic load ratings : C0r
194 kN
Fatigue load limit : Cu
28.8 kN
Limiting speeds(Grease lub.)
2800 min-1
Limiting speeds(Oil lub.)
3900 min-1
Load center spread : a
40.8 mm
Constant e
0.82
Axial load factors : Y1
0.73
Axial load factors : Y0
0.40
Mounting dimensions
da(min.)
74 mm
db(max.)
71 mm
Da(max.)
111 mm
da(min.)
94 mm
db(min.)
119 mm
Sa(min.)
4 mm
Sb(min.)
11 mm
ra(max.)
2.5 mm
rb(max.)
2.5 mm
Refer.
(Refer.)Mass
2.03 kg
