Koyo UCC307
(BRAND)：KOYO
(Availability)：In Stock
Specifications

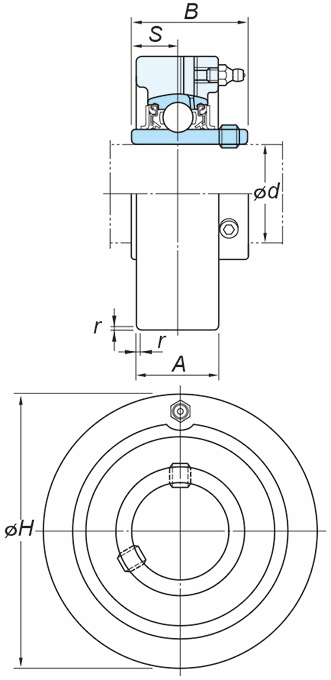

(Boundary dimensions ...etc)
d
35 mm
H
110 mm
A
32 mm
r
3 mm
B
48 mm
S
19 mm
Basic load ratings : Cr
33.4 kN
Basic load ratings : C0r
19.3 kN
Fatigue load limit : Cu
0.877 kN
factor : f0
13.2
Nipple size
1/4-28UNF
Mounting dimensions
Refer.
(Refer.)Unit mass
2.2 kg
