Koyo UCC308
(BRAND)：KOYO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications

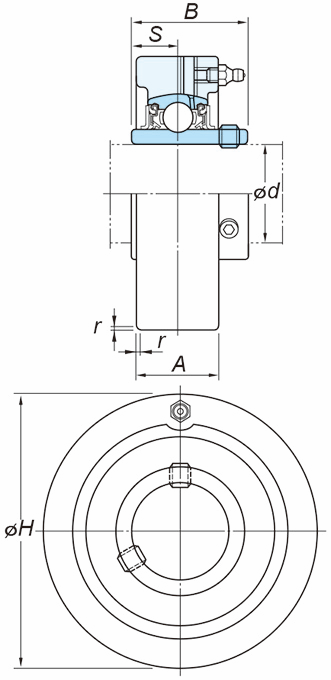

(Boundary dimensions ...etc)
d
40 mm
H
120 mm
A
34 mm
r
3 mm
B
52 mm
S
19 mm
Basic load ratings : Cr
40.7 kN
Basic load ratings : C0r
24.0 kN
Fatigue load limit : Cu
1.09 kN
factor : f0
13.2
Nipple size
1/4-28UNF
Mounting dimensions
Refer.
(Refer.)Unit mass
2.2 kg
