Koyo UCC328
(BRAND)：KOYO
(Availability)：In Stock
Specifications

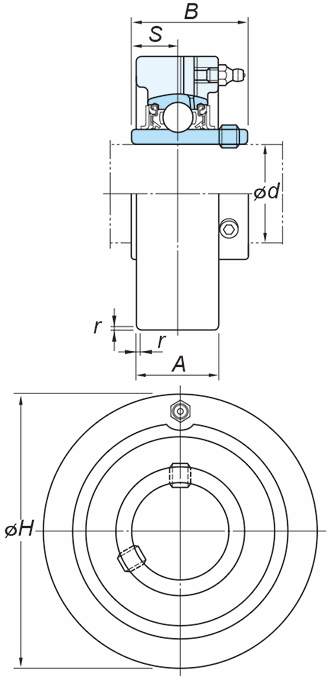

(Boundary dimensions ...etc)
d
140 mm
H
360 mm
A
100 mm
r
6 mm
B
145 mm
S
59 mm
Basic load ratings : Cr
253 kN
Basic load ratings : C0r
246 kN
Fatigue load limit : Cu
7.54 kN
factor : f0
13.6
Nipple size
R1/8
Mounting dimensions
Refer.
(Refer.)Unit mass
52.9 kg
