Koyo UCF211
(BRAND)：KOYO
(Availability)：In Stock
Specifications

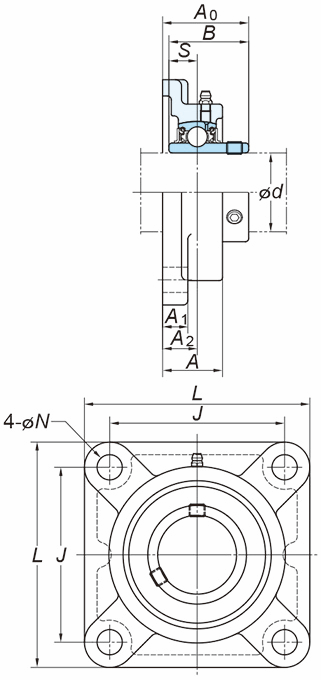

(Boundary dimensions ...etc)
d
55 mm
L
162 mm
A
43 mm
J
130 mm
N
19 mm
A1
18 mm
A2
25 mm
A0
58.4 mm
B
55.6 mm
S
22.2 mm
Bolt size
M16
Basic load ratings : Cr
43.4 kN
Basic load ratings : C0r
29.4 kN
Fatigue load limit : Cu
1.34 kN
factor : f0
14.4
Nipple size
R1/8
Mounting dimensions
Refer.
(Refer.)Unit mass
3.4 kg
