Koyo UCF212
(BRAND)：KOYO
(Availability)：In Stock
Specifications

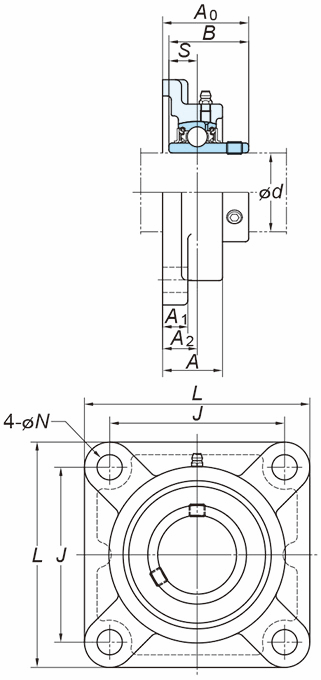

(Boundary dimensions ...etc)
d
60 mm
L
175 mm
A
48 mm
J
143 mm
N
19 mm
A1
18 mm
A2
29 mm
A0
68.7 mm
B
65.1 mm
S
25.4 mm
Bolt size
M16
Basic load ratings : Cr
52.4 kN
Basic load ratings : C0r
36.2 kN
Fatigue load limit : Cu
1.65 kN
factor : f0
14.4
Nipple size
R1/8
Mounting dimensions
Refer.
(Refer.)Unit mass
4.2 kg
