Koyo UCF321
(BRAND)：KOYO
(Availability)：In Stock
Specifications

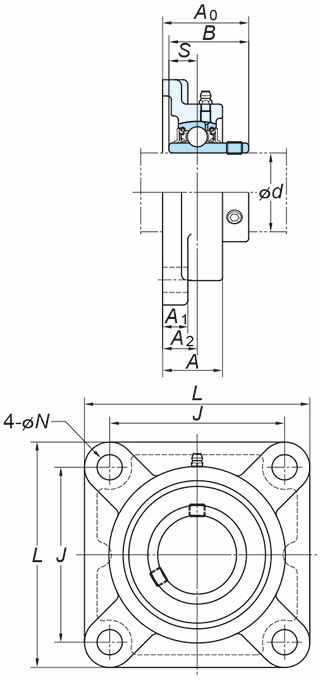

(Boundary dimensions ...etc)
d
105 mm
L
310 mm
A
94 mm
J
242 mm
N
38 mm
A1
32 mm
A2
59 mm
A0
127 mm
B
112 mm
S
44 mm
Bolt size
M33
Basic load ratings : Cr
184 kN
Basic load ratings : C0r
153 kN
Fatigue load limit : Cu
5.41 kN
factor : f0
13.2
Nipple size
R1/8
Mounting dimensions
Refer.
(Refer.)Unit mass
30.2 kg
