Koyo UCFC205
(BRAND)：KOYO
(Availability)：In Stock
Specifications

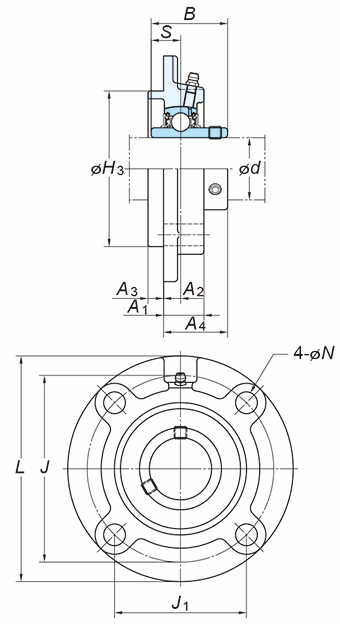

(Boundary dimensions ...etc)
d
25 mm
L
115 mm
H3
70 mm
J
90 mm
J1
63.6 mm
A1
21 mm
A2
10 mm
A3
6 mm
A4
29.8 mm
N
12 mm
B
34.1 mm
S
14.3 mm
Bolt size
M10
Basic load ratings : Cr
14.0 kN
Basic load ratings : C0r
7.85 kN
Fatigue load limit : Cu
0.357 kN
factor : f0
13.9
Nipple size
1/4-28UNF
Mounting dimensions
Refer.
(Refer.)Unit mass
0.95 kg
