Koyo UCFC206
(BRAND)：KOYO
(Availability)：In Stock
Specifications

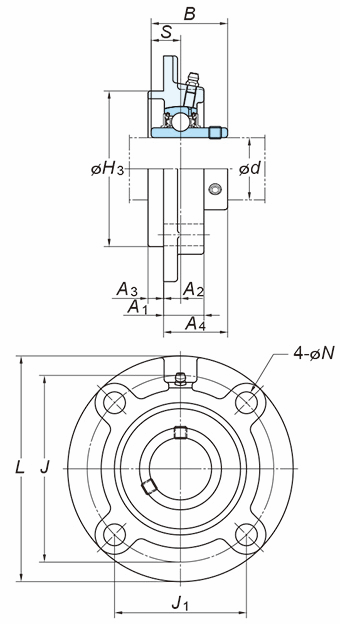

(Boundary dimensions ...etc)
d
30 mm
L
125 mm
H3
80 mm
J
100 mm
J1
70.7 mm
A1
23 mm
A2
10 mm
A3
8 mm
A4
32.2 mm
N
12 mm
B
38.1 mm
S
15.9 mm
Bolt size
M10
Basic load ratings : Cr
19.5 kN
Basic load ratings : C0r
11.3 kN
Fatigue load limit : Cu
0.514 kN
factor : f0
13.9
Nipple size
1/4-28UNF
Mounting dimensions
Refer.
(Refer.)Unit mass
1.3 kg
