Koyo UCFC210
(BRAND)：KOYO
(Availability)：In Stock
Specifications

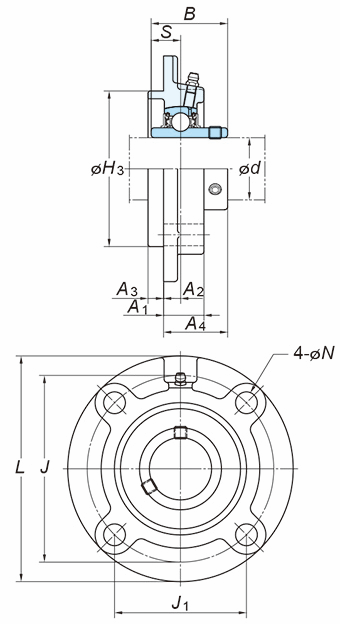

(Boundary dimensions ...etc)
d
50 mm
L
165 mm
H3
110 mm
J
138 mm
J1
97.6 mm
A1
28 mm
A2
10 mm
A3
12 mm
A4
42.6 mm
N
16 mm
B
51.6 mm
S
19 mm
Bolt size
M14
Basic load ratings : Cr
35.1 kN
Basic load ratings : C0r
23.3 kN
Fatigue load limit : Cu
1.06 kN
factor : f0
14.4
Nipple size
1/4-28UNF
Mounting dimensions
Refer.
(Refer.)Unit mass
2.9 kg
