Koyo UCFC213
(BRAND)：KOYO
(Availability)：In Stock
Specifications

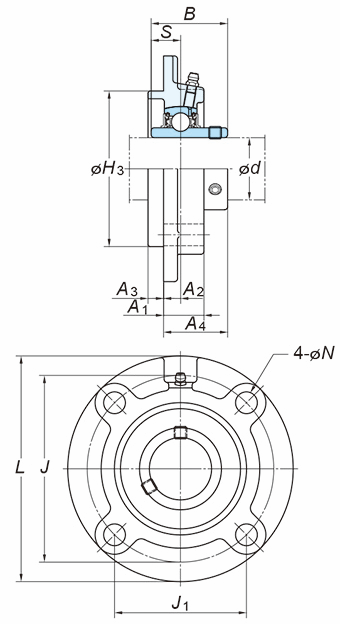

(Boundary dimensions ...etc)
d
65 mm
L
205 mm
H3
145 mm
J
170 mm
J1
120.2 mm
A1
36 mm
A2
16 mm
A3
14 mm
A4
55.7 mm
N
19 mm
B
65.1 mm
S
25.4 mm
Bolt size
M16
Basic load ratings : Cr
57.2 kN
Basic load ratings : C0r
40.1 kN
Fatigue load limit : Cu
1.82 kN
factor : f0
14.4
Nipple size
R1/8
Mounting dimensions
Refer.
(Refer.)Unit mass
5.6 kg
