Koyo UCFC215
(BRAND)：KOYO
(Availability)：In Stock
Specifications

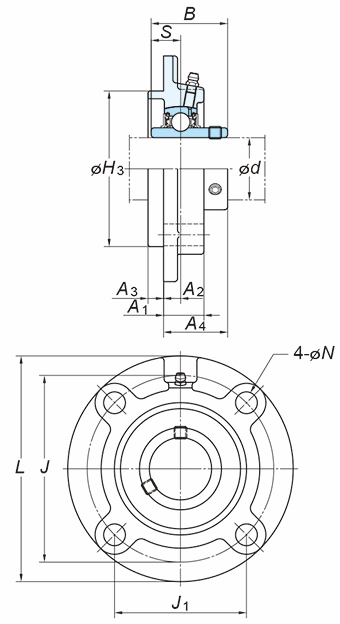

(Boundary dimensions ...etc)
d
75 mm
L
220 mm
H3
160 mm
J
184 mm
J1
130.1 mm
A1
40 mm
A2
18 mm
A3
16 mm
A4
62.5 mm
N
19 mm
B
77.8 mm
S
33.3 mm
Bolt size
M16
Basic load ratings : Cr
67.4 kN
Basic load ratings : C0r
48.3 kN
Fatigue load limit : Cu
2.17 kN
factor : f0
14.5
Nipple size
R1/8
Mounting dimensions
Refer.
(Refer.)Unit mass
7.2 kg
