Koyo UCFCX08
(BRAND)：KOYO
(Availability)：In Stock
Specifications

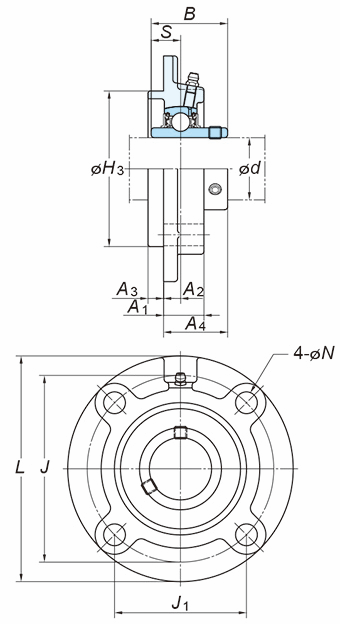

(Boundary dimensions ...etc)
d
40 mm
L
133 mm
H3
92 mm
J
111 mm
J1
78.5 mm
A1
26 mm
A2
9 mm
A3
11 mm
A4
39.2 mm
N
12 mm
B
49.2 mm
S
19 mm
Bolt size
M10
Basic load ratings : Cr
34.1 kN
Basic load ratings : C0r
21.3 kN
Fatigue load limit : Cu
0.968 kN
factor : f0
14.0
Nipple size
1/4-28UNF
Mounting dimensions
Refer.
(Refer.)Unit mass
2.0 kg
