Koyo UCFCX13
(BRAND)：KOYO
(Availability)：In Stock
Specifications

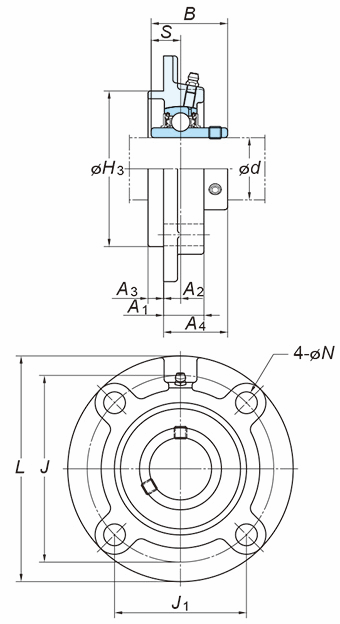

(Boundary dimensions ...etc)
d
65 mm
L
194 mm
H3
140 mm
J
165 mm
J1
116.7 mm
A1
33 mm
A2
11 mm
A3
20 mm
A4
55.4 mm
N
16 mm
B
74.6 mm
S
30.2 mm
Bolt size
M14
Basic load ratings : Cr
62.2 kN
Basic load ratings : C0r
44.1 kN
Fatigue load limit : Cu
2.01 kN
factor : f0
14.5
Nipple size
R1/8
Mounting dimensions
Refer.
(Refer.)Unit mass
5.7 kg
