Koyo UCFCX15
(BRAND)：KOYO
(Availability)：In Stock
Specifications

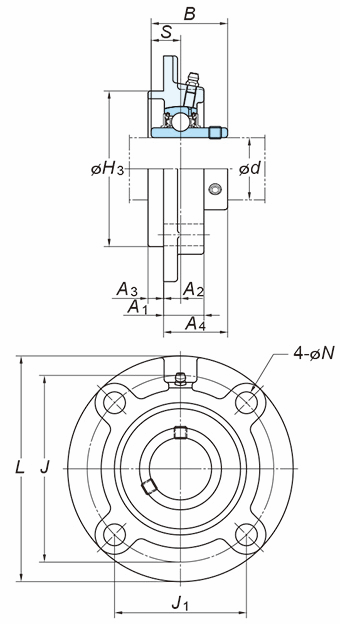

(Boundary dimensions ...etc)
d
75 mm
L
222 mm
H3
164 mm
J
190 mm
J1
134.3 mm
A1
35 mm
A2
12 mm
A3
22 mm
A4
61.3 mm
N
19 mm
B
82.6 mm
S
33.3 mm
Bolt size
M16
Basic load ratings : Cr
72.7 kN
Basic load ratings : C0r
53.0 kN
Fatigue load limit : Cu
2.30 kN
factor : f0
14.6
Nipple size
R1/8
Mounting dimensions
Refer.
(Refer.)Unit mass
8.0 kg
