Koyo UCFCX20
(BRAND)：KOYO
(Availability)：In Stock
Specifications

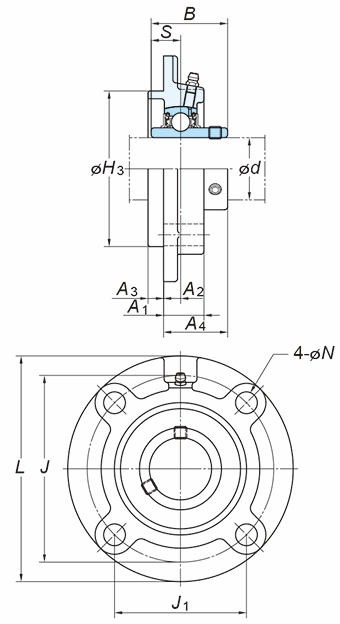

(Boundary dimensions ...etc)
d
100 mm
L
276 mm
H3
206 mm
J
238 mm
J1
168.3 mm
A1
66 mm
A2
22 mm
A3
28 mm
A4
90.3 mm
N
23 mm
B
117.5 mm
S
49.2 mm
Bolt size
M20
Basic load ratings : Cr
133 kN
Basic load ratings : C0r
105 kN
Fatigue load limit : Cu
3.91 kN
factor : f0
14.4
Nipple size
R1/8
Mounting dimensions
Refer.
(Refer.)Unit mass
18.2 kg
