Koyo UCFL209
(BRAND)：KOYO
(Availability)：In Stock
Specifications

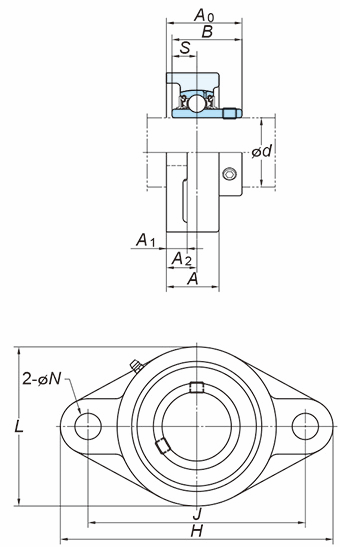

(Boundary dimensions ...etc)
d
45 mm
H
188 mm
L
108 mm
A
38 mm
J
148 mm
N
19 mm
A1
15 mm
A2
22 mm
A3
52.2 mm
B
49.2 mm
S
19 mm
Bolt size
M16
Basic load ratings : Cr
34.1 kN
Basic load ratings : C0r
21.3 kN
Fatigue load limit : Cu
0.968 kN
factor : f0
14.0
Nipple size
1/4-28UNF
Mounting dimensions
Refer.
(Refer.)Unit mass
1.9 kg
