Koyo UCFL215
(BRAND)：KOYO
(Availability)：In Stock
Specifications

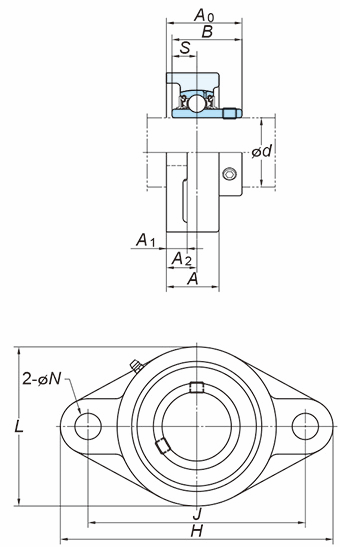

(Boundary dimensions ...etc)
d
75 mm
H
275 mm
L
165 mm
A
56 mm
J
225 mm
N
23 mm
A1
20 mm
A2
34 mm
A3
78.5 mm
B
77.8 mm
S
33.3 mm
Bolt size
M20
Basic load ratings : Cr
67.4 kN
Basic load ratings : C0r
48.3 kN
Fatigue load limit : Cu
2.17 kN
factor : f0
14.5
Nipple size
R1/8
Mounting dimensions
Refer.
(Refer.)Unit mass
6.4 kg
