Koyo UCFL216
(BRAND)：KOYO
(Availability)：In Stock

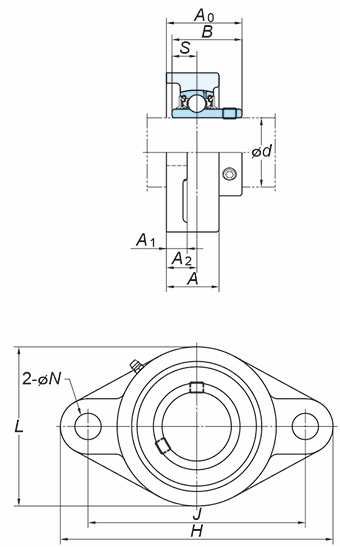

Specifications
(Boundary dimensions ...etc)
d
80 mm
H
290 mm
L
180 mm
A
58 mm
J
233 mm
N
25 mm
A1
20 mm
A2
34 mm
A3
83.3 mm
B
82.6 mm
S
33.3 mm
Bolt size
M22
Basic load ratings : Cr
72.7 kN
Basic load ratings : C0r
53.0 kN
Fatigue load limit : Cu
2.30 kN
factor : f0
14.6
Nipple size
R1/8
Mounting dimensions
Refer.
(Refer.)Unit mass
7.8 kg
