Koyo UCFL218
(BRAND)：KOYO
(Availability)：In Stock
Specifications

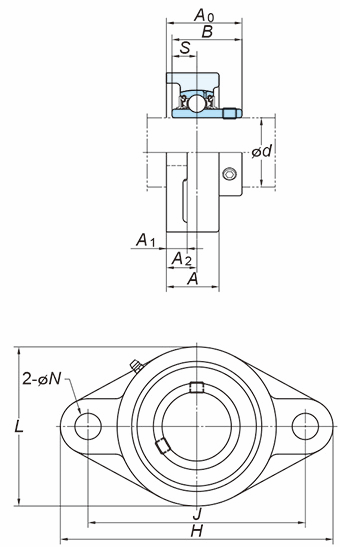

(Boundary dimensions ...etc)
d
90 mm
H
320 mm
L
205 mm
A
68 mm
J
265 mm
N
25 mm
A1
23 mm
A2
40 mm
A3
96.3 mm
B
96 mm
S
39.7 mm
Bolt size
M22
Basic load ratings : Cr
96.1 kN
Basic load ratings : C0r
71.5 kN
Fatigue load limit : Cu
2.91 kN
factor : f0
14.5
Nipple size
R1/8
Mounting dimensions
Refer.
(Refer.)Unit mass
12.3 kg
