Koyo UCFL305
(BRAND)：KOYO
(Availability)：In Stock
Specifications

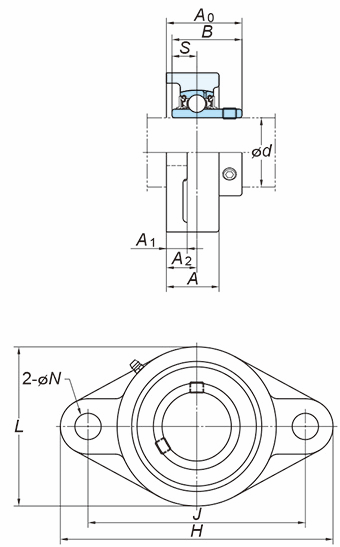

(Boundary dimensions ...etc)
d
25 mm
H
150 mm
L
80 mm
A
29 mm
J
113 mm
N
19 mm
A1
13 mm
A2
16 mm
A3
39 mm
B
38 mm
S
15 mm
Bolt size
M16
Basic load ratings : Cr
21.2 kN
Basic load ratings : C0r
10.9 kN
Fatigue load limit : Cu
0.495 kN
factor : f0
12.6
Nipple size
1/4-28UNF
Mounting dimensions
Refer.
(Refer.)Unit mass
1.1 kg
