Koyo UCFL310
(BRAND)：KOYO
(Availability)：In Stock
Specifications

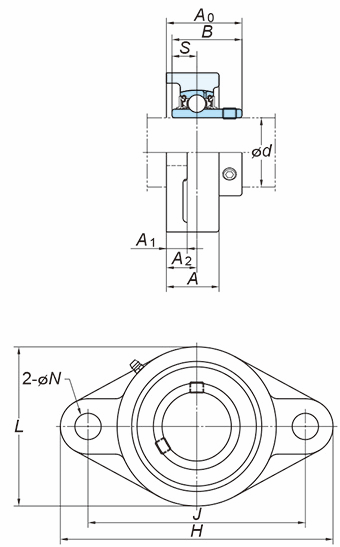

(Boundary dimensions ...etc)
d
50 mm
H
240 mm
L
140 mm
A
48 mm
J
187 mm
N
25 mm
A1
19 mm
A2
28 mm
A3
67 mm
B
61 mm
S
22 mm
Bolt size
M22
Basic load ratings : Cr
62.0 kN
Basic load ratings : C0r
38.3 kN
Fatigue load limit : Cu
1.74 kN
factor : f0
13.2
Nipple size
R1/8
Mounting dimensions
Refer.
(Refer.)Unit mass
4.4 kg
