Koyo UCFL312
(BRAND)：KOYO
(Availability)：In Stock
Specifications

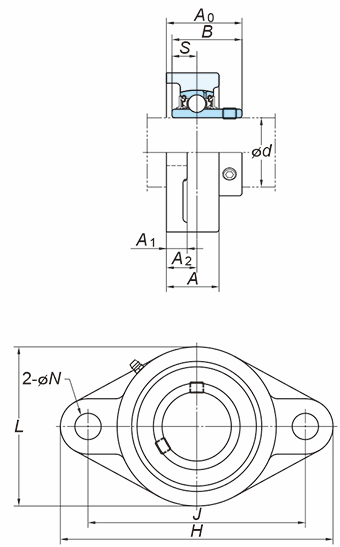

(Boundary dimensions ...etc)
d
60 mm
H
270 mm
L
160 mm
A
56 mm
J
212 mm
N
31 mm
A1
22 mm
A2
33 mm
A3
78 mm
B
71 mm
S
26 mm
Bolt size
M27
Basic load ratings : Cr
81.9 kN
Basic load ratings : C0r
52.2 kN
Fatigue load limit : Cu
2.37 kN
factor : f0
13.2
Nipple size
R1/8
Mounting dimensions
Refer.
(Refer.)Unit mass
6.5 kg
