Koyo UCFL313
(BRAND)：KOYO
(Availability)：In Stock
Specifications

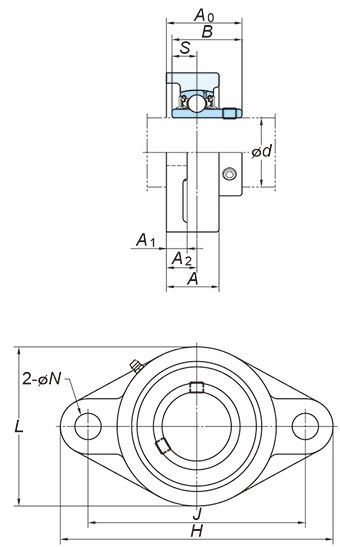

(Boundary dimensions ...etc)
d
65 mm
H
295 mm
L
175 mm
A
58 mm
J
240 mm
N
31 mm
A1
25 mm
A2
33 mm
A3
78 mm
B
75 mm
S
30 mm
Bolt size
M27
Basic load ratings : Cr
92.7 kN
Basic load ratings : C0r
59.9 kN
Fatigue load limit : Cu
2.68 kN
factor : f0
13.2
Nipple size
R1/8
Mounting dimensions
Refer.
(Refer.)Unit mass
8.5 kg
