Koyo UCFS307
(BRAND)：KOYO
(Availability)：In Stock
Specifications

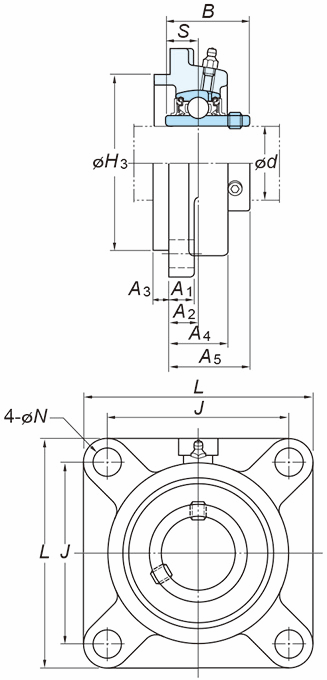

(Boundary dimensions ...etc)
d
35 mm
L
135 mm
H3
100 mm
J
100 mm
N
19 mm
A1
16 mm
A2
11 mm
A3
9 mm
A4
27 mm
A5
40 mm
B
48 mm
S
19 mm
Bolt size
M16
Basic load ratings : Cr
33.4 kN
Basic load ratings : C0r
19.3 kN
Fatigue load limit : Cu
0.877 kN
factor : f0
13.2
Nipple size
1/4-28UNF
Mounting dimensions
Refer.
(Refer.)Unit mass
2.3 kg
