Koyo UCFS308
(BRAND)：KOYO
(Availability)：In Stock
Specifications

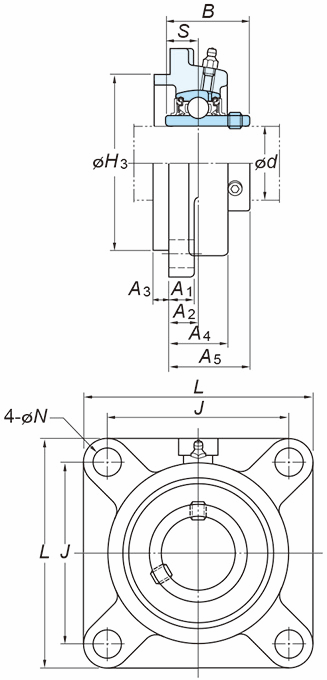

(Boundary dimensions ...etc)
d
40 mm
L
150 mm
H3
115 mm
J
112 mm
N
19 mm
A1
17 mm
A2
13 mm
A3
10 mm
A4
30 mm
A5
46 mm
B
52 mm
S
19 mm
Bolt size
M16
Basic load ratings : Cr
40.7 kN
Basic load ratings : C0r
24.0 kN
Fatigue load limit : Cu
1.09 kN
factor : f0
13.2
Nipple size
1/4-28UNF
Mounting dimensions
Refer.
(Refer.)Unit mass
3.4 kg
