Koyo UCFS317
(BRAND)：KOYO
(Availability)：In Stock
Specifications

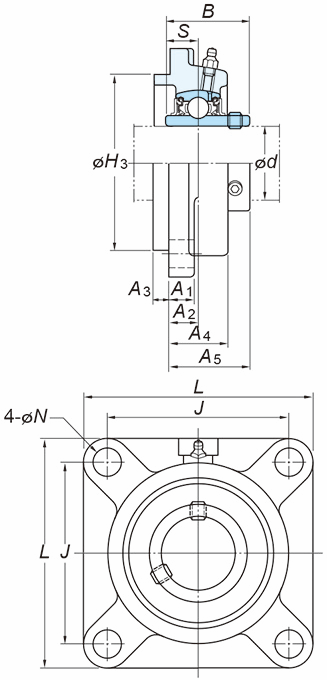

(Boundary dimensions ...etc)
d
85 mm
L
260 mm
H3
220 mm
J
204 mm
N
31 mm
A1
27 mm
A2
24 mm
A3
20 mm
A4
54 mm
A5
80 mm
B
96 mm
S
40 mm
Bolt size
M27
Basic load ratings : Cr
133 kN
Basic load ratings : C0r
96.8 kN
Fatigue load limit : Cu
3.82 kN
factor : f0
13.3
Nipple size
R1/8
Mounting dimensions
Refer.
(Refer.)Unit mass
17.3 kg
