Koyo UCFS319
(BRAND)：KOYO
(Availability)：In Stock
Specifications

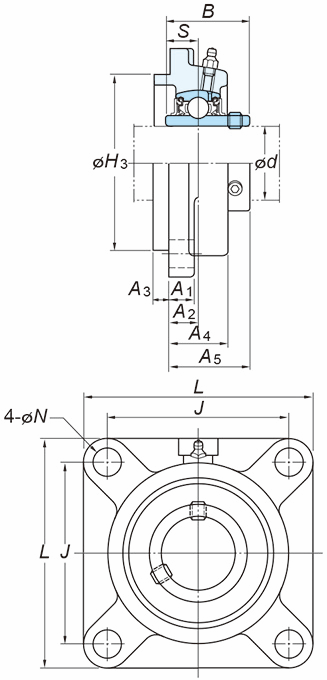

(Boundary dimensions ...etc)
d
95 mm
L
290 mm
H3
250 mm
J
228 mm
N
35 mm
A1
30 mm
A2
39 mm
A3
20 mm
A4
74 mm
A5
101 mm
B
103 mm
S
41 mm
Bolt size
M30
Basic load ratings : Cr
153 kN
Basic load ratings : C0r
119 kN
Fatigue load limit : Cu
4.45 kN
factor : f0
13.3
Nipple size
R1/8
Mounting dimensions
Refer.
(Refer.)Unit mass
24.5 kg
