Koyo UCFX12
(BRAND)：KOYO
(Availability)：In Stock
Specifications

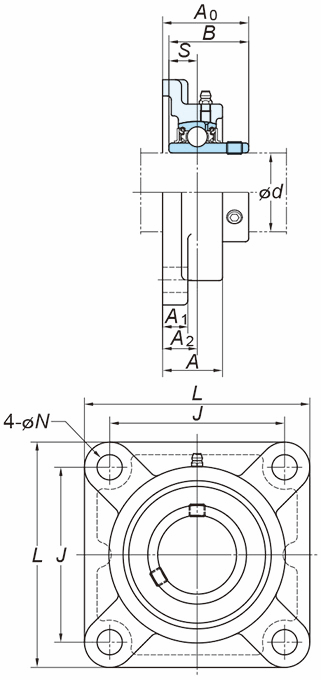

(Boundary dimensions ...etc)
d
60 mm
L
187 mm
A
59 mm
J
149 mm
N
19 mm
A1
21 mm
A2
34 mm
A0
73.7 mm
B
65.1 mm
S
25.4 mm
Bolt size
M16
Basic load ratings : Cr
57.2 kN
Basic load ratings : C0r
40.1 kN
Fatigue load limit : Cu
1.82 kN
factor : f0
14.4
Nipple size
R1/8
Mounting dimensions
Refer.
(Refer.)Unit mass
5.7 kg
