Koyo UCP208
(BRAND)：KOYO
(Availability)：In Stock
Specifications

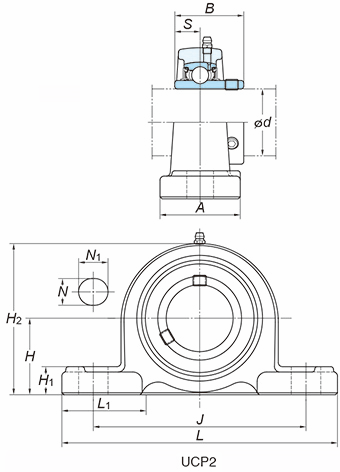

(Boundary dimensions ...etc)
d
40 mm
H
49.2 mm
L
184 mm
A
54 mm
J
137 mm
N
17 mm
N1
21 mm
H1
18 mm
H2
98 mm
L1
53 mm
B
49.2 mm
S
19 mm
Bolt size
M14
Basic load ratings : Cr
29.1 kN
Basic load ratings : C0r
17.8 kN
Fatigue load limit : Cu
0.809 kN
factor : f0
14.0
Nipple size
1/4-28UNF
Mounting dimensions
Refer.
Unit mass
2.0 kg
