Koyo UCP210
(BRAND)：KOYO
(Availability)：In Stock
Specifications

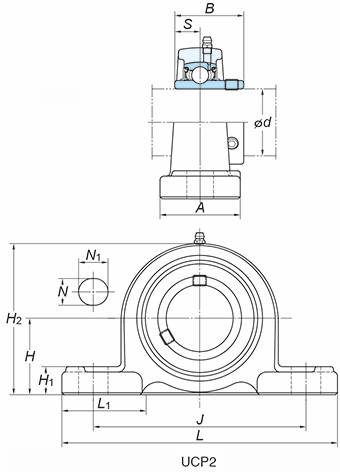

(Boundary dimensions ...etc)
d
50 mm
H
57.2 mm
L
206 mm
A
60 mm
J
159 mm
N
20 mm
N1
22 mm
H1
21 mm
H2
113 mm
L1
60 mm
B
51.6 mm
S
19 mm
Bolt size
M16
Basic load ratings : Cr
35.1 kN
Basic load ratings : C0r
23.3 kN
Fatigue load limit : Cu
1.06 kN
factor : f0
14.4
Nipple size
1/4-28UNF
Mounting dimensions
Refer.
Unit mass
2.9 kg
