Koyo UCP213
(BRAND)：KOYO
(Availability)：In Stock
Specifications

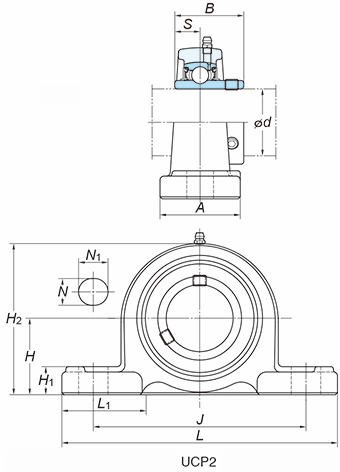

(Boundary dimensions ...etc)
d
65 mm
H
76.2 mm
L
265 mm
A
70 mm
J
203 mm
N
25 mm
N1
30 mm
H1
27 mm
H2
150 mm
L1
78 mm
B
65.1 mm
S
25.4 mm
Bolt size
M20
Basic load ratings : Cr
57.2 kN
Basic load ratings : C0r
40.1 kN
Fatigue load limit : Cu
1.82 kN
factor : f0
14.4
Nipple size
R1/8
Mounting dimensions
Refer.
Unit mass
5.9 kg
