Koyo UCP310
(BRAND)：KOYO
(Availability)：In Stock
Specifications

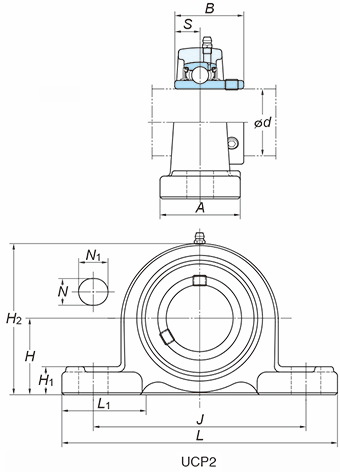

(Boundary dimensions ...etc)
d
50 mm
H
75 mm
L
275 mm
A
75 mm
J
212 mm
N
20 mm
N1
35 mm
H1
24 mm
H2
148 mm
L1
88 mm
B
61 mm
S
22 mm
Bolt size
M16
Basic load ratings : Cr
62.0 kN
Basic load ratings : C0r
38.3 kN
Fatigue load limit : Cu
1.74 kN
factor : f0
13.2
Nipple size
R1/8
Mounting dimensions
Refer.
Unit mass
6.6 kg
