Koyo UCP312
(BRAND)：KOYO
(Availability)：In Stock
Specifications

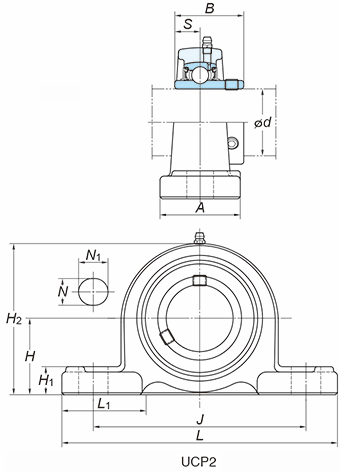

(Boundary dimensions ...etc)
d
60 mm
H
85 mm
L
330 mm
A
85 mm
J
250 mm
N
25 mm
N1
38 mm
H1
29 mm
H2
167 mm
L1
103 mm
B
71 mm
S
26 mm
Bolt size
M20
Basic load ratings : Cr
81.9 kN
Basic load ratings : C0r
52.2 kN
Fatigue load limit : Cu
2.37 kN
factor : f0
13.2
Nipple size
R1/8
Mounting dimensions
Refer.
Unit mass
9.5 kg
