Koyo UCSFL202XS6
(BRAND)：KOYO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications

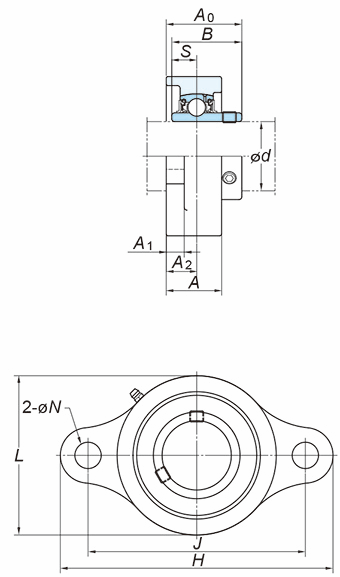

(Boundary dimensions ...etc)
d
15 mm
H
98 mm
L
52 mm
A
24 mm
J
76.5 mm
N
12 mm
A1
10 mm
A2
14 mm
A0
29.9 mm
B
27.4 mm
S
11.5 mm
Bolt size
M10
Basic load ratings : Cr
8.15 kN
Basic load ratings : C0r
3.85 kN
Fatigue load limit : Cu
0.175 kN
factor : f0
13.2
Mounting dimensions
Refer.
(Refer.)Unit mass
0.33 kg
