Koyo UCSFL204S6
(BRAND)：KOYO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications

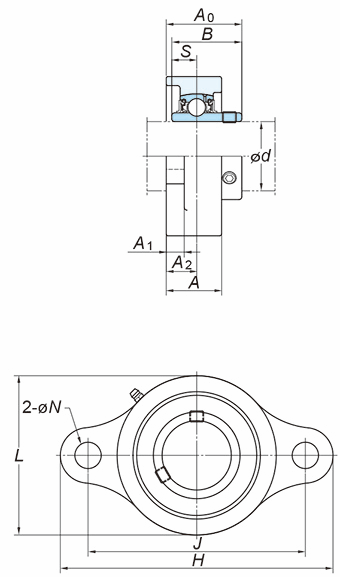

(Boundary dimensions ...etc)
d
20 mm
H
113 mm
L
60 mm
A
26 mm
J
90 mm
N
12 mm
A1
10 mm
A2
15 mm
A0
33.3 mm
B
31 mm
S
12.7 mm
Bolt size
M10
Basic load ratings : Cr
10.9 kN
Basic load ratings : C0r
5.35 kN
Fatigue load limit : Cu
0.243 kN
factor : f0
13.2
Mounting dimensions
Refer.
(Refer.)Unit mass
0.47 kg
