Koyo UCSFL205S6
(BRAND)：KOYO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications

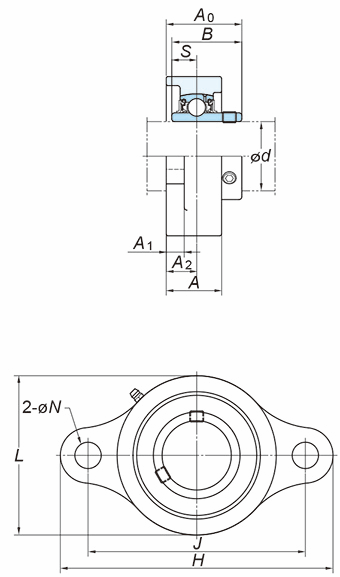

(Boundary dimensions ...etc)
d
25 mm
H
130 mm
L
68 mm
A
27.5 mm
J
99 mm
N
16 mm
A1
10 mm
A2
16 mm
A0
35.8 mm
B
34.1 mm
S
14.3 mm
Bolt size
M14
Basic load ratings : Cr
11.9 kN
Basic load ratings : C0r
6.30 kN
Fatigue load limit : Cu
0.286 kN
factor : f0
13.9
Mounting dimensions
Refer.
(Refer.)Unit mass
0.61 kg
