Koyo UCSFL206S6
(BRAND)：KOYO
(Availability)：In Stock
Specifications

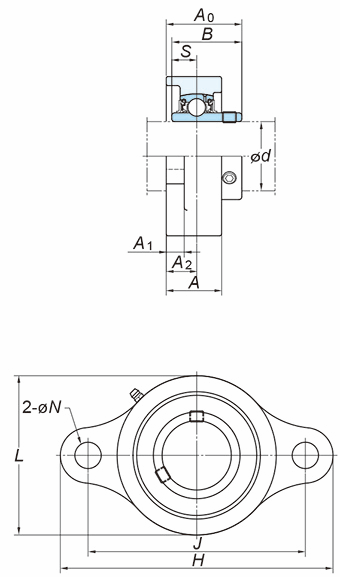

(Boundary dimensions ...etc)
d
30 mm
H
148 mm
L
80 mm
A
31 mm
J
117 mm
N
16 mm
A1
10 mm
A2
18 mm
A0
40.2 mm
B
38.1 mm
S
15.9 mm
Bolt size
M14
Basic load ratings : Cr
16.5 kN
Basic load ratings : C0r
9.05 kN
Fatigue load limit : Cu
0.411 kN
factor : f0
13.9
Mounting dimensions
Refer.
(Refer.)Unit mass
0.9 kg
