Koyo UCSFL208S6
(BRAND)：KOYO
(Availability)：In Stock

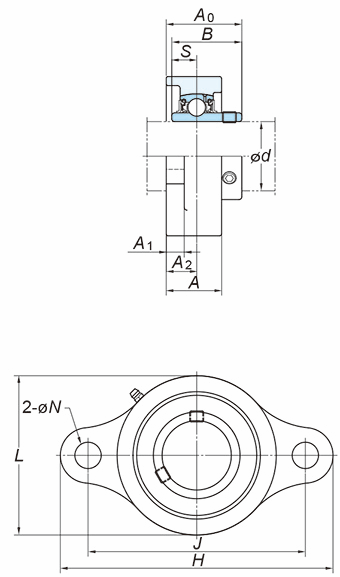

Specifications
(Boundary dimensions ...etc)
d
40 mm
H
175 mm
L
94 mm
A
36 mm
J
144 mm
N
16 mm
A1
12 mm
A2
21 mm
A0
51.2 mm
B
49.2 mm
S
19 mm
Bolt size
M14
Basic load ratings : Cr
24.8 kN
Basic load ratings : C0r
14.3 kN
Fatigue load limit : Cu
0.650 kN
factor : f0
14.0
Mounting dimensions
Refer.
(Refer.)Unit mass
1.4 kg
