Koyo UCSFL210S6
(BRAND)：KOYO
(Availability)：In Stock
Specifications

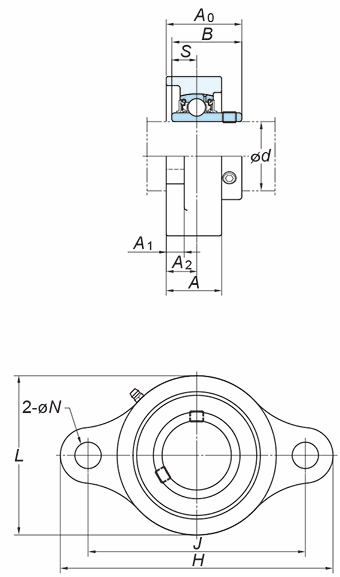

(Boundary dimensions ...etc)
d
50 mm
H
197 mm
L
106 mm
A
40 mm
J
157 mm
N
19 mm
A1
13 mm
A2
22 mm
A0
54.6 mm
B
51.6 mm
S
19 mm
Bolt size
M16
Basic load ratings : Cr
29.8 kN
Basic load ratings : C0r
18.6 kN
Fatigue load limit : Cu
0.845 kN
factor : f0
14.4
Mounting dimensions
Refer.
(Refer.)Unit mass
1.9 kg
