Koyo UCSP207S6
(BRAND)：KOYO
(Availability)：In Stock
Specifications

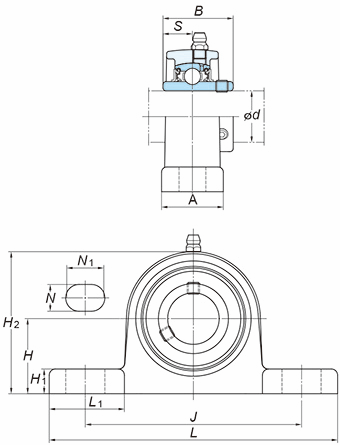

(Boundary dimensions ...etc)
d
35 mm
H
47.6 mm
L
127 mm
A
167 mm
J
38 mm
N
17 mm
N1
21 mm
H1
14 mm
H2
91 mm
B
42.9 mm
S
17.5 mm
Bolt size
M14
Basic load ratings : Cr
21.8 kN
Basic load ratings : C0r
12.3 kN
Fatigue load limit : Cu
0.559 kN
factor : f0
13.9
Mounting dimensions
Refer.
(Refer.)Unit mass
1.4 kg
