Koyo UCSP208S6
(BRAND)：KOYO
(Availability)：In Stock
Specifications

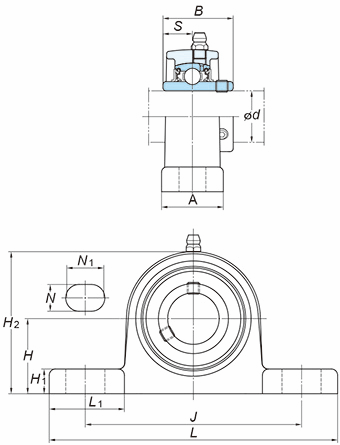

(Boundary dimensions ...etc)
d
40 mm
H
49.2 mm
L
137 mm
A
184 mm
J
40 mm
N
17 mm
N1
21 mm
H1
14 mm
H2
97 mm
B
49.2 mm
S
19 mm
Bolt size
M14
Basic load ratings : Cr
24.8 kN
Basic load ratings : C0r
14.3 kN
Fatigue load limit : Cu
0.650 kN
factor : f0
14.0
Mounting dimensions
Refer.
(Refer.)Unit mass
1.7 kg
