Koyo UCSP209S6
(BRAND)：KOYO
(Availability)：In Stock
Specifications

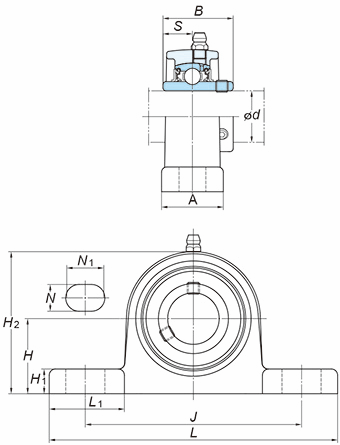

(Boundary dimensions ...etc)
d
45 mm
H
54 mm
L
146 mm
A
190 mm
J
40 mm
N
17 mm
N1
21 mm
H1
15 mm
H2
104 mm
B
49.2 mm
S
19 mm
Bolt size
M14
Basic load ratings : Cr
27.8 kN
Basic load ratings : C0r
16.2 kN
Fatigue load limit : Cu
0.736 kN
factor : f0
14.0
Mounting dimensions
Refer.
(Refer.)Unit mass
2 kg
