Koyo UCSP210S6
(BRAND)：KOYO
(Availability)：In Stock
Specifications

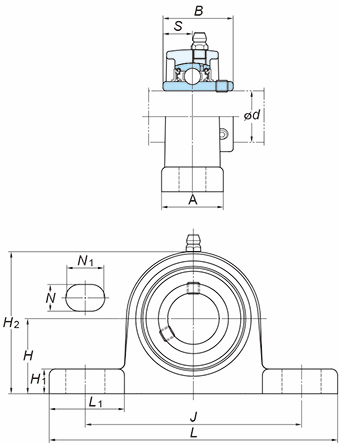

(Boundary dimensions ...etc)
d
50 mm
H
57.2 mm
L
159 mm
A
206 mm
J
45 mm
N
20 mm
N1
22 mm
H1
16 mm
H2
111 mm
B
51.6 mm
S
19 mm
Bolt size
M16
Basic load ratings : Cr
29.8 kN
Basic load ratings : C0r
18.6 kN
Fatigue load limit : Cu
0.845 kN
factor : f0
14.4
Mounting dimensions
Refer.
(Refer.)Unit mass
2.5 kg
