Koyo UCT201
(BRAND)：KOYO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications

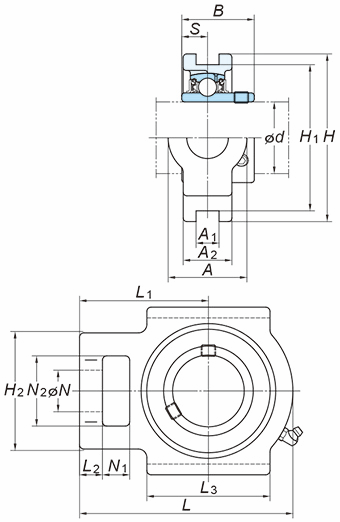

(Boundary dimensions ...etc)
d
12 mm
A
32 mm
A1
12 mm
A2
21 mm
H
89 mm
H1
76 mm
H2
51 mm
L
94 mm
L1
61 mm
L2
10 mm
L3
51 mm
N
19 mm
N1
16 mm
N2
32 mm
B
31 mm
S
12.7 mm
Basic load ratings : Cr
12.8 kN
Basic load ratings : C0r
6.65 kN
Fatigue load limit : Cu
0.302 kN
factor : f0
13.2
Nipple size
1/4-28UNF
Mounting dimensions
Refer.
(Refer.)Unit mass
0.81 kg
