Koyo UCT210
(BRAND)：KOYO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications

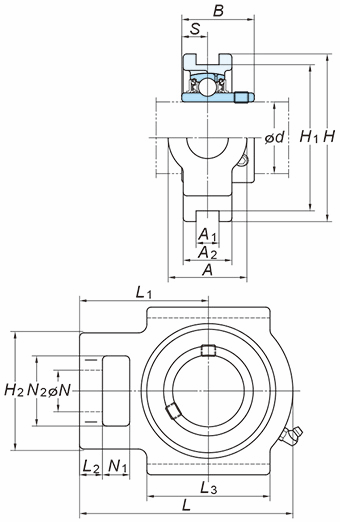

(Boundary dimensions ...etc)
d
50 mm
A
49 mm
A1
16 mm
A2
37 mm
H
117 mm
H1
102 mm
H2
83 mm
L
149 mm
L1
90 mm
L2
16 mm
L3
86 mm
N
29 mm
N1
19 mm
N2
49 mm
B
51.6 mm
S
19 mm
Basic load ratings : Cr
35.1 kN
Basic load ratings : C0r
23.3 kN
Fatigue load limit : Cu
1.06 kN
factor : f0
14.4
Nipple size
1/4-28UNF
Mounting dimensions
Refer.
(Refer.)Unit mass
2.6 kg
