Koyo UCT211
(BRAND)：KOYO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications

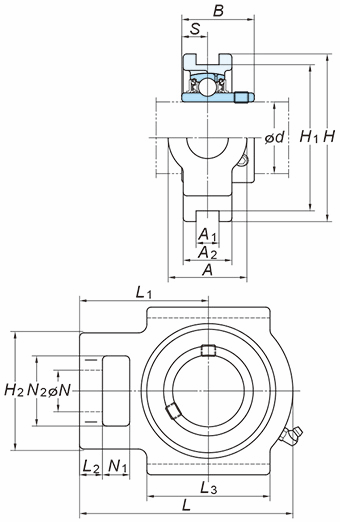

(Boundary dimensions ...etc)
d
55 mm
A
64 mm
A1
22 mm
A2
38 mm
H
146 mm
H1
130 mm
H2
102 mm
L
171 mm
L1
106 mm
L2
19 mm
L3
95 mm
N
35 mm
N1
25 mm
N2
64 mm
B
55.6 mm
S
22.2 mm
Basic load ratings : Cr
43.4 kN
Basic load ratings : C0r
29.4 kN
Fatigue load limit : Cu
1.34 kN
factor : f0
14.4
Nipple size
R1/8
Mounting dimensions
Refer.
(Refer.)Unit mass
4.0 kg
